AN47848T(陶瓷) 125V 20A-350A
- 2025-04-11 15:21:30
- 0

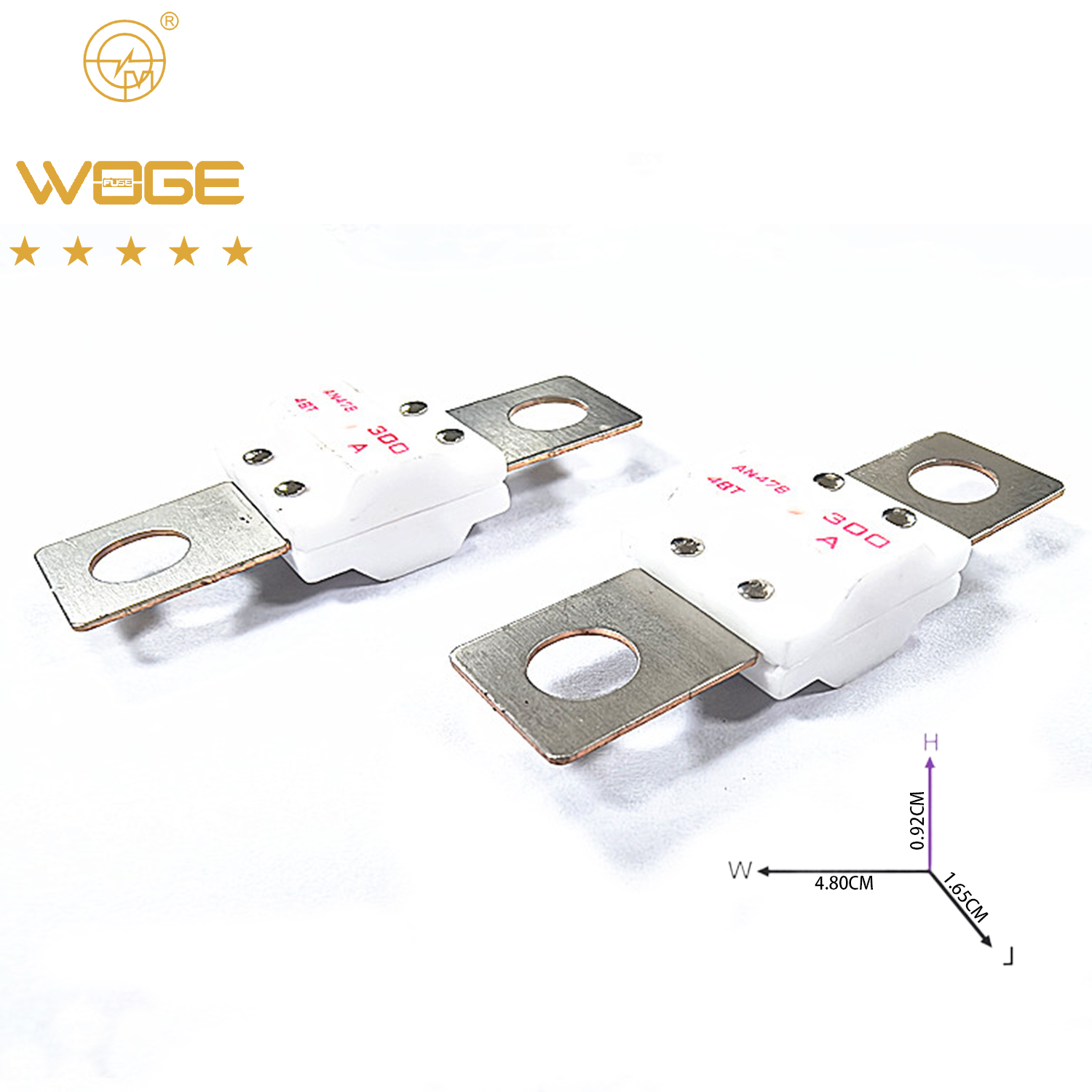

- 螺栓保險絲|Bolt FUSE
- 型號|model: AN47848T(陶瓷)
- 慢熔|Slow melting
- 1.AN47848 Txxx熔斷器為大電流接線保護提供了一種不占用空間的熔斷器，并具有“D灌注丸技術”尺寸圖的延時特性.

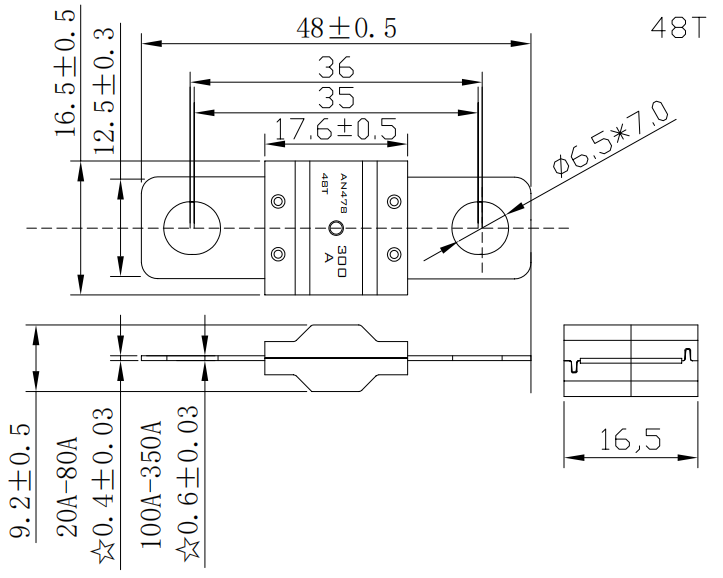

- 1.The AN47848 Txxx fuse offers a bilt-on space saving fuse for high current wiringprotection ang provides time delay characteristics with " D iffusion pill Technology"Size chart
Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！
- 2.Note
Rated voltage: less than 125VDC
Breaking capacity: 2500A 125V DC
Operating temperature: -40 ℃~+125 ℃ - Body llaterical: High pressure ceramics
- Material: copper alloy
2.說明
額定電壓：小于直流125V
致斷容量：2500A/125V DC
使用溫度：-40℃～+125℃ - 閥體橫向：高壓陶瓷
- 材質：銅合金
3.The specifications and models of fuses are as follows|保險絲規格型號如
| Material number |
Ampere rating |
Color |
Volt |
Safety regulations |
| AN47848T025 | 25 | White | 125V DC 125V AC |
UL |
| AN47848T030 |
30 | UL | ||
| AN47848T040 |
40 | UL | ||
| AN47848T050 |
50 | UL | ||
| AN47848T060 |
60 | UL | ||
| AN47848T070 |
70 | UL | ||
| AN47848T080 |
80 | UL | ||
| AN47848T100 |
100 | UL | ||
| AN47848T125 |
125 | UL | ||
| AN47848T150 |
150 | UL | ||
| AN47848T175 |
175 | UL | ||
| AN47848T200 |
200 | UL | ||
| AN47848T250 |
250 | UL | ||
| AN47848T300 |
300 | UL | ||
| AN47848T350 |
350 | UL |
4.Fusing characteristics|熔斷特性
| 額定電流% |
安培額定值 | 運作時間 |
| 100% | 20-350A | ≥4 Hours, Minimum |
| 200% | 20-350A | <10s, Minimum |
注notes:
@環保文件以附件發送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安規證書附件發送
@Attachment of safety regulation certificate
