5FCK管狀保險絲
- 2022-06-21 17:41:07
- 0
廠家長期供應引線汽車保險絲座、保險絲、汽車保險絲座、汽車保險絲盒、保險絲座、汽車保險絲座、玻璃保險絲等

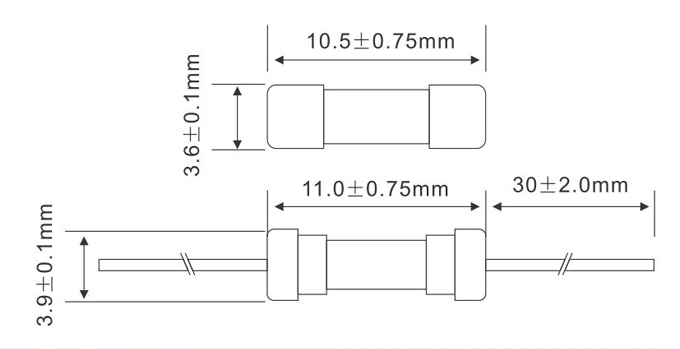

Quick Acting High Breaking Capacity (φ5*20MM)
+Approvals(5FCK)
SEMKO 63mA-6.3A VDE 63mA-10A
TUV 12.5V-16A
BSI 63mA-6.3mA
UL Recongnized 63mA-10A
CSA Acceptance 63mA-10A
PSE 1A-5A CCC 63mA-6.3A KTL 63ma-6.3A CQC 8A/10A
Recognized Component For Canada and U.S.10.1A-16A
+Interrupting Ratings
1500 amperes at 250V AC.
Electrical Characteristics
| Rated Current | 1.5 In | 2.1 In | 2.75 In | 4 In | 10 In | ||
| MIN | MAX | MIN | MAX | MIN | MAX | MAX | |
| 63mA~100A | 60min | 30min | 10ms | 2ms | 3ms | 300ms | 20ms |
| 125mA~6.3A | 60min | 30min | 10ms | 3ms | 3ms | 300ms | 20ms |
| 80mA~10A | 30min | 30min | 50ms | 20ms | 10ms | 1ms | 30ms |
+Operating Temperature -55℃ to +125℃
| Cartidge Catalog Number | Ampere Rating | Voltage Rating | Nominal Resistance | Valtage Drop Mel | Nominal Ting L2f |
| (In) | (V) | Cold Ohms | (Mv)MAX | A.Sec | |
| 5FCK 0.63 | 63mA |
250V |
10.390 | 1500 | 0.00079 |
| 5FCK.0.80 | 80mA | 7.7820 | 1300 | 0.00128 | |
| 5FCK.0.10 | 100mA | 5.1210 | 1200 | 0.00200 | |
| 5FCK.0.125 | 125mA | 4.4490 | 1200 | 0.00770 | |
| 5FCK.0.16 | 160mA | 2.7060 | 1100 | 0.01272 | |
| 5FCK.0.20 | 200mA | 2.0270 | 1100 | 0.01988 | |
| 5FCK.0.25 | 250mA | 1.5690 | 1100 | 0.03106 | |
| 5FCK.0.315 | 315mA | 0.9780 | 900 | 0.08905 | |
| 5FCK.0.40 | 400mA | 0.3740 | 800 | 0.14400 | |
| 5FCK.0.50 | 400mA | 0.2690 | 700 | 0.21257 | |
| 5FCK.0.63 | 630mA | 0.1900 | 600 | 0.36512 | |
| 5FCK.0.80 | 800mAA | 0.1320 | 550 | 0.58481 | |
| 5FCK 001 | 1A | 0.0960 | 500 | 0.91982 | |
| 5FCK 1.25 | 1.25A | 0.1400 | 450 | 1.07974 | |
| 5FCK 1.60 | 1.6A | 0.1040 | 450 | 1.32649 | |
| 5FCK 002 | 2A | 0.0840 | 400 | 1.84136 | |
| 5FCK 2.50 | 2.5A | 0.0570 | 350 | 4.33125 | |
| 5FCK 3.15 | 3.15A | 0.0390 | 300 | 9.59994 | |
| 5FCK 004 | 4A | 0.0310 | 250 | 15.5200 | |
| 5FCK 005 | 5A | 0.0230 | 200 | 38.3333 | |
| 5FCK 6.30 | 6.3A | 0.0170 | 200 | 73.4265 | |
| 5FCK 008 | 8A | 0.0110 | 190 | 108.800 | |
| 5FCK 010 | 10A | 0.0081 | 180 | 170.000 | |
| 5FCK 12.5 | 12.5A | 0.0057 | 180 | 234.000 | |
| 5FCK 016 | 16A | 0.0045 | 180 | 384.000 |
