3SLM管狀保險絲
- 2022-12-30 18:35:28
- 0
玻璃保險絲| Glass FUSE
插件| DIP

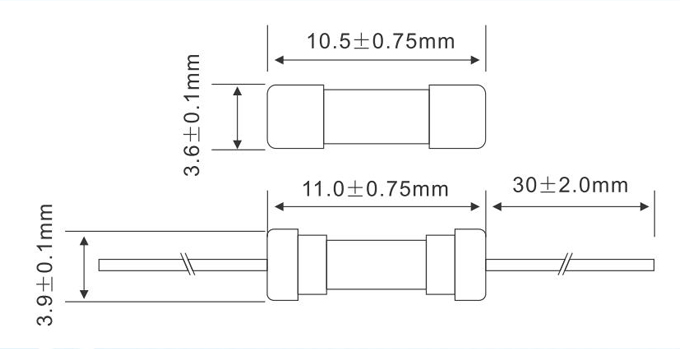

型號 | model: 3.6*10MM
Time-Lag Glass Tube Fuse Series (φ3.6*10MM)
+Approvals
3PDP(With Pig-Tail)
UL Listed 100mA-10A UL Listed 100mA-10A
CSA Certified 100mA-10A CSA Certified 100mA-10A
+Interrupting Ratings
50 amperes at 250V AC
Electrical Characteristics
| Rated Current | 1 In | 2In |
| MIN | MAX | |
| 100mA~5A | 4hr | 60sec |
+Operating Temperature -55℃ to +125℃
| Cartidge Catalog Number | Ampere Rating | Voltage Rating | Nominal Resistance | Nominal Ting L2f |
|
| (In) | (V) | Cold Ohms | A.Sec |
|
|
| 3SLM.100 | 100MA |
125V
250V |
1.1550 | 0.00250 |
|
| 3SLM.125 | 125MA | 2.9850 | 0.00390 |
|
|
| 3SLM.200 | 200MA | 1.7580 | 0.01100 |
|
|
| 3SLM.250 | 250MA | 1.5120 | 0.01830 |
|
|
| 3SLM.300 | 300MA | 0.9255 | 0.05320 |
|
|
| 3SLM.400 | 400MA | 0.3350 | 0.15340 |
|
|
| 3SLM.500 | 500MA | 0.2510 | 0.37450 |
|
|
| 3SLM.600 | 600MA | 0.1550 | 0.52000 |
|
|
| 3SLM.800 | 800MA | 0.1110 | 0.85450 |
|
|
| 3SLM 001 | 1A | 0.0855 | 1.26500 |
|
|
| 3SLM 1.50 | 1.5A | 0.0530 | 3.51200 |
|
|
| 3SLM 1.60 | 1.6A | 0.0470 | 3.41410 |
|
|
| 3SLM 002 | 2A | 0.0340 | 6.05700 |
|
|
| 3SLM 2.50 | 2.5A | 0.0290 | 8.86400 |
|
|
| 3SLM 004 | 4A | 0.0181 | 30.2400 |
|
|
| 3SLM 005 | 5A | 0.0144 | 54.6260 |
|
|
| 3SLM 007 | 7A | 0.0085 | 85.2410 |
|
|
| 3SLM 008 | 8A | 0.0078 | 118.236 |
|
|
| 3SLM 010 | 10A | 0.0063 | 225.014 |
