SBAF-SL 20A-120A 32Vdc
- 2025-04-29 14:00:08
- 0

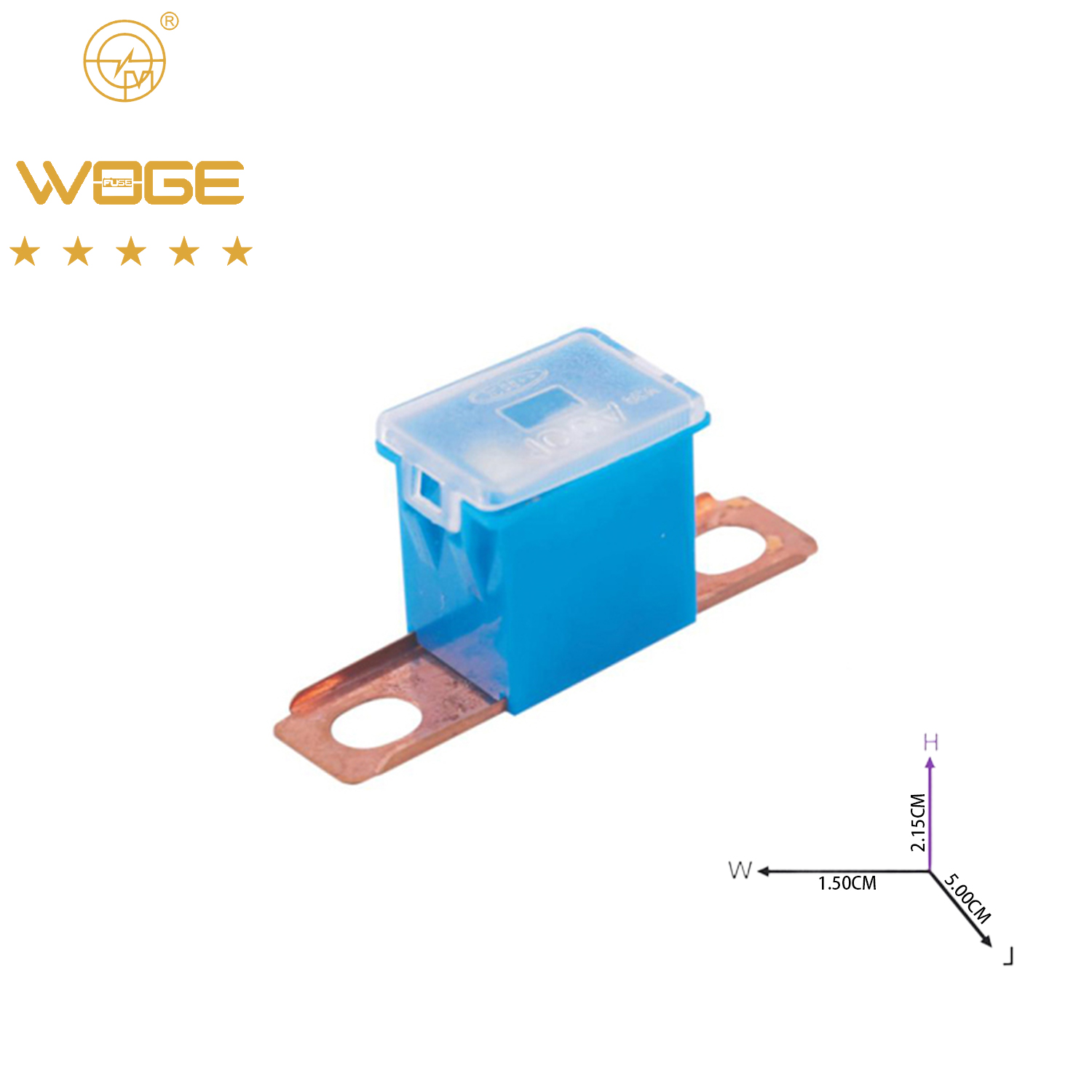

方型慢熔保險絲 | Square Shape Slow melting Fuse
- 型號 | model:SBAF-SL
- 慢熔|Slow melting
- 安規認證|Safety certificatio
Ps：According to usage conditions, the characteristics of the fuse may change|根據使用狀況，保險絲特性可能改變！
- 1.SBAF-SL is a cartridge style fuse with female terminal design. JCASE? provides both increased time delay and low voltage drop to protect high current circuits. JCASE? has the ability to handle inrush currents.
- 1.SBAF-SL是帶連接座/頭和端子的管狀保險絲，它既增加了延時，又降低了電壓降，可保護高電流電路并能應對突入電流
2.Note
- Voltage Rating: 32 VDC
- Interrupting Rating: 1000A amperes at32 VDC
- Operating Temperature Range: -40? C ~ 125? C
- Housing Material:
- Housing Material (60A):
- Cover Material:
- Insertion Force:
- Extraction Force:
- Complies with:
- 2.注額定電壓：32vdc
- 中斷額定值：32vdc時1000A安培
- 工作溫度范圍：-40?C~ 125?C
- 外殼材料：
- 外殼材料（60A）：
- 外殼材料：
- 插入力：
- 拔出力：
- 符合：
- 3.The specifications and models of fuses are as follows|保險絲規格型
| Material number |
Ampere rating |
Volt |
Color |
Typ. Voltage Drop (mV) |
I2t (A2s) |
| SBAF-SL20 |
20 | 32V DC | White | ||
| SBAF-SL30 |
30 | Pink | |||
| SBAF-SL40 |
40 | Green |
|||
| SBAF-SL50 |
50 | Red | |||
| SBAF-SL60 |
60 | Yellow |
|||
| SBAF-SL70 |
70 | Brown |
|||
| SBAF-SL80 |
80 | Black |
|||
| SBAF-SL100 |
100 | Blue |
|||
| SBAF-SL120 |
120 | Grey |
|
In
|
1.1In
|
2.0In
|
3.5In
|
6.0In
|
|||
|
20-120A
|
>4Hours
|
Min |
Max |
Min |
Max |
Min |
Max |
|
5 s
|
100 s
|
0.2 s
|
7 s
|
0.04 s
|
1 s
| ||
注notes:
@環保文件以附件發送，每年更新一次;
@Environmental protection documents shall be sent as attachments and updated once a yea
@安規證書附件發送
@Attachment of safety regulation certificate
