WSMD0603貼片可恢復保險絲
- 2022-12-28 16:22:24
- 0
貼片自恢保險絲| SMD PTC FUSE
貼片| SMD
型號 | model: WSMD0603
Specification Sheet
| Terminal Pad Solderability: |
| Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3. |
| Terminal PAD Materials: Tin-Plated Nickel-copper |
| Lead-Free,RoHS Compliant |
| Marking: |
| R ROHS |
| 1 010Part Identification |

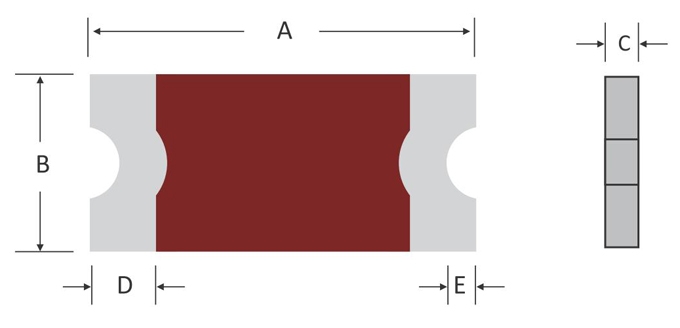

TABLEI.DIMENSIONS
| MODEL | A |
|
B |
|
C |
|
D | E |
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| WSMD0603R010SF | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| WSMD0603R020SF | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| WSMD0603R025SF | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| WSMD0603R035SF | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| WSMD0603R050SF | 1.45 | 1.85 | 0.65 | 1.05 | 0.50 | 1.00 | 0.15 | 0.10 |
| WSMD0603R075SF | 1.45 | 1.85 | 0.65 | 1.05 | 0.50 | 1.00 | 0.15 | 0.10 |
| WSMD0603R100SF | 1.45 | 1.85 | 0.65 | 1.05 | 0.50 | 1.00 | 0.15 | 0.10 |
Performance Specification
| Model |
Mar King |
V Max |
I Max |
I Hold@25℃ |
I Trip@25℃ |
Pd Typ. |
Maximum Time To Trip | Resistance | Agency Approval | |||
| (V DC) | (A) | (A) | (A) | (W) | Current(A) | Time(Sec) | R1 Min(Ω) | R1 Max(Ω) | UL | TUV | ||
| WSMD0603R010SF | 1 | 15.0 | 40 | 0.10 | 0.30 | 0.5 | 0.5 | 1.00 | 0.900 | 6.000 |
|
|
| WSMD0603R020SF | 2 | 9.0 | 40 | 0.20 | 0.50 | 0.5 | 1.0 | 0.60 | 0.550 | 3.500 |
|
|
| WSMD0603R025SF | 2 | 9.0 | 40 | 0.25 | 0.55 | 0.5 | 8.0 | 0.08 | 0.500 | 3.000 |
|
|
| WSMD0603R035SF | 3 | 6.0 | 40 | 0.35 | 0.75 | 0.5 | 8.0 | 0.10 | 0.20 | 1.400 |
|
|
| WSMD0603R050SF | 5 | 6.0 | 40 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.100 | 0.800 |
|
|
| WSMD0603R075SF | 7 | 6.0 | 40 | 0.75 | 1.40 | 0.5 | 8.0 | 0.10 | 0.060 | 0.450 |
|
|
| WSMD0603R100SF | 0 | 6.0 | 40 | 1.00 | 2.00 | 0.5 | 8.0 | 0.10 | 0.040 | 0.300 |
|
|
| Passive aging | +85℃,1000 hrs. | ±5% typi |
| Humidity aging | +85℃,85% RH.,168 hours | ±5% typical |
| Thermal shock | +85℃ to -40℃,20 time hours | ±33% typical |
| Resistance to solvent | MIL-STD-202,Method 215 | No change |
| Vibration | MIL-STD-202,Method 201 | No change |
