ANMZ-H04 多路螺栓保險絲盒
- 2025-04-08 16:42:33
- 0

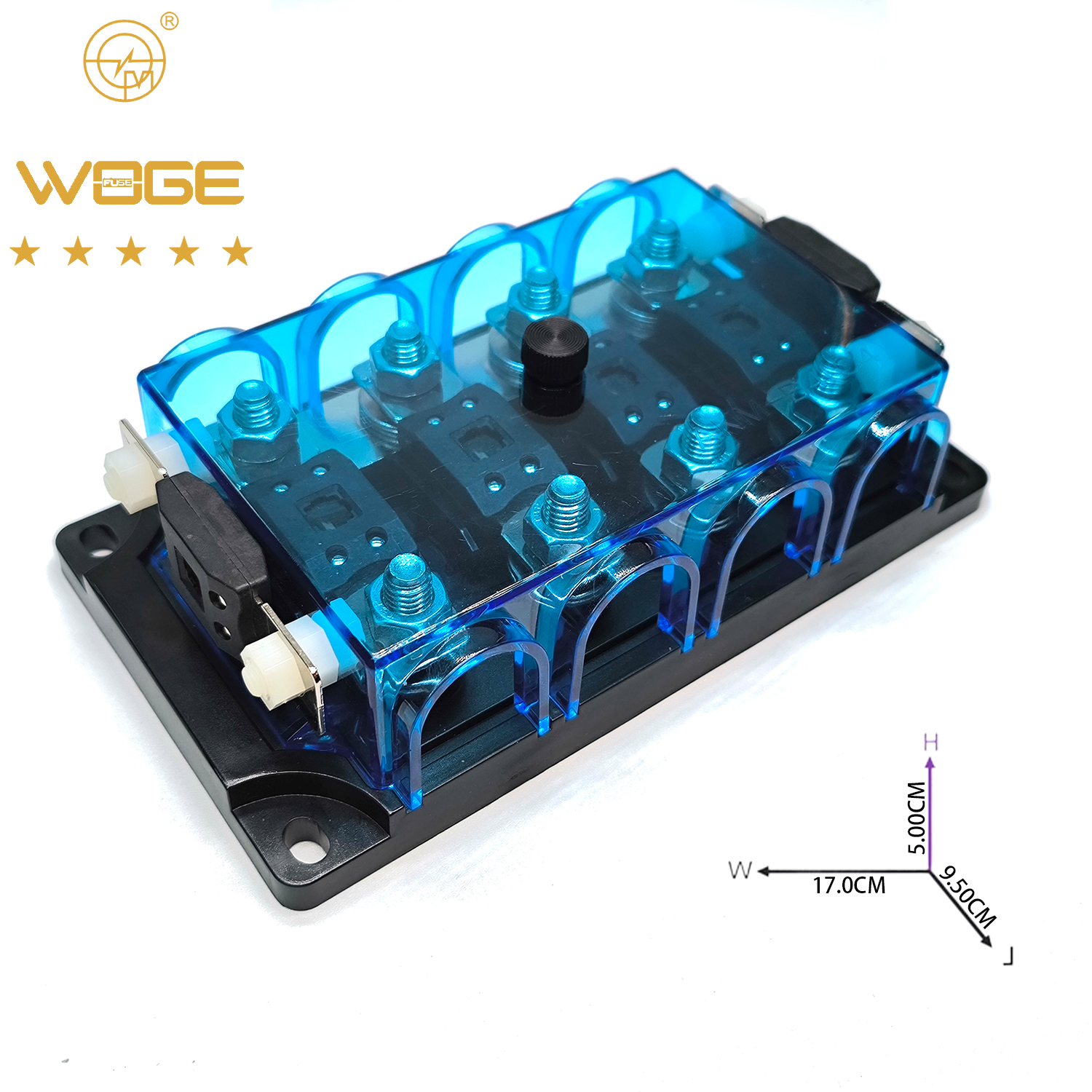

多路螺栓保險絲盒 | Bolt plate fuse Box Multipoint wirin
- 型號 | model: ANMZ-H04
- 1.ANMZ-H04 is a fuse holder with bolt fuses installed inside, and customers can choose a 4-in-4-out wiring method according to their needs
- 1.ANMZ-H04是一款內部裝有螺栓保險絲的保險絲座，可根據客戶需求可選擇4進4出的出接線方式
- 2Note
- ? Rated voltage: ≤ 80V DC
- ? Use environment: -40 ~ +125℃ u
- ? Material: Plastic, Copper Alloy, Steel
- ? Tightening force: Fuse tightening force (M8) 12~13 N.m, box fastening force (M5) 5~7N. m
- ? Wiring method: Four in N out (N ≤ 9)
- ? Recommended insurance :ANMA/AN998 40A~500A
- 2.說明
?額定電壓：≤80V DC
?使用環境： -40～+125℃ u
?緊固力:保險絲緊固力（M8）12~13 N.m, 盒裝緊固力（M5）5~7N.m
?材質：塑料，銅合金，鋼
?電線規格：輸入≤95mm2,輸出≤25mm2
?接線方式： 四進N出（N≤9）
?推薦保險:ANMA/AN998 40A~500A - 注notes：
- @環保文件以附件發送，每年更新一次；
- @Environmental protection documents shall be sent as attachments and updated once a year;
- @安規證書附件發送；
- @Attachment of safety regulation certificate
