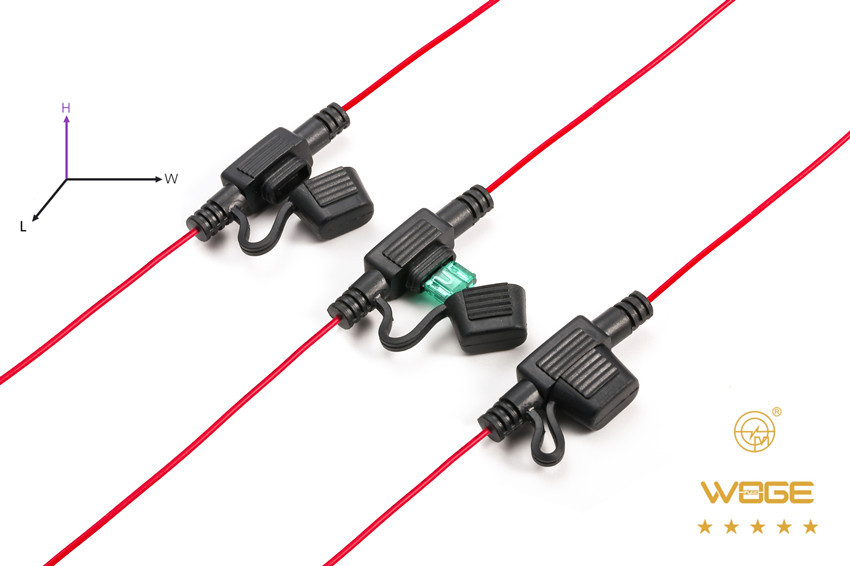

小型防水保險絲盒 | AB11 FUSE HOLDER

防水帶引線12AWG-22AWG |Waterproof tape lead 12AWG-22AWG

型號 | model: WG1W101

Specifications | 規范

Fuse Hardware: AB11/AB11U/AB11N Fuses

Available Fuse Rating: 1A-40A

Max Voltage: 32/58V

Max Fuse Rating: 40A

Operating Temp: -15° to 105° C

Wire Size: See Optional (Standard)

Wire Insulation: Optional (Standard)

Contacts:  Copper AlloyTin-Plated

Description
The harness fuse holder is an application that requires AB19 circuit protection, fuse (1A-40A), and series fuse holder. The standard products are listed in the data sheet, and the wire length and insulation color can be customized according to requirements. Wires are also available on request. All UDFs have minimum ordering requirements. Contact WGOEFUSE sales representative for details.

描述

線束保險絲座是需要電路保護的應用,保險絲（1A-40A），串聯保險絲座。數據表中列出了標準產品，電線長度和絕緣顏色可根據要求定制。電線也可根據要求提供。所有自定義項具有最低訂購要求。聯系WGOEFUSE銷售代表了解詳情。
